A set package include:
1 x 2MP smart cloud camera (excluding TF card)
1 x specification
1 x screw pack
1 x stents
1 x power adatper
1 x power cord
Specification | Model | D307-2L |
Main Processor | Dual-core 32-bit DSP (XM650V200), pure hard compression, watchdog | |
System | Image Sensor | 2x2MP, 1/2.8” SC233A high performance CMOS sensors |
Video Compression | Smart H.265X | |
Operation System | Embedded Linux operation system | |
APP | Casacop (Android and IOS support) | |
Video | High Definition | 2*2MP |
Image Resolution | Main code stream: 1920*2160@12fps; substream: 800*896@12fps | |
Min. Illumination | 0.01 Lux/pro series | |
Lens | 3.6mm | |
Perspective | 92º | |
Turn Video | Flip up and down/flip side to side | |
Lighting | Light Control Mode | starlight full color/intelligent warning/infrared night vision |
Number of lights | 8pcs red lights+4pcs white lights | |

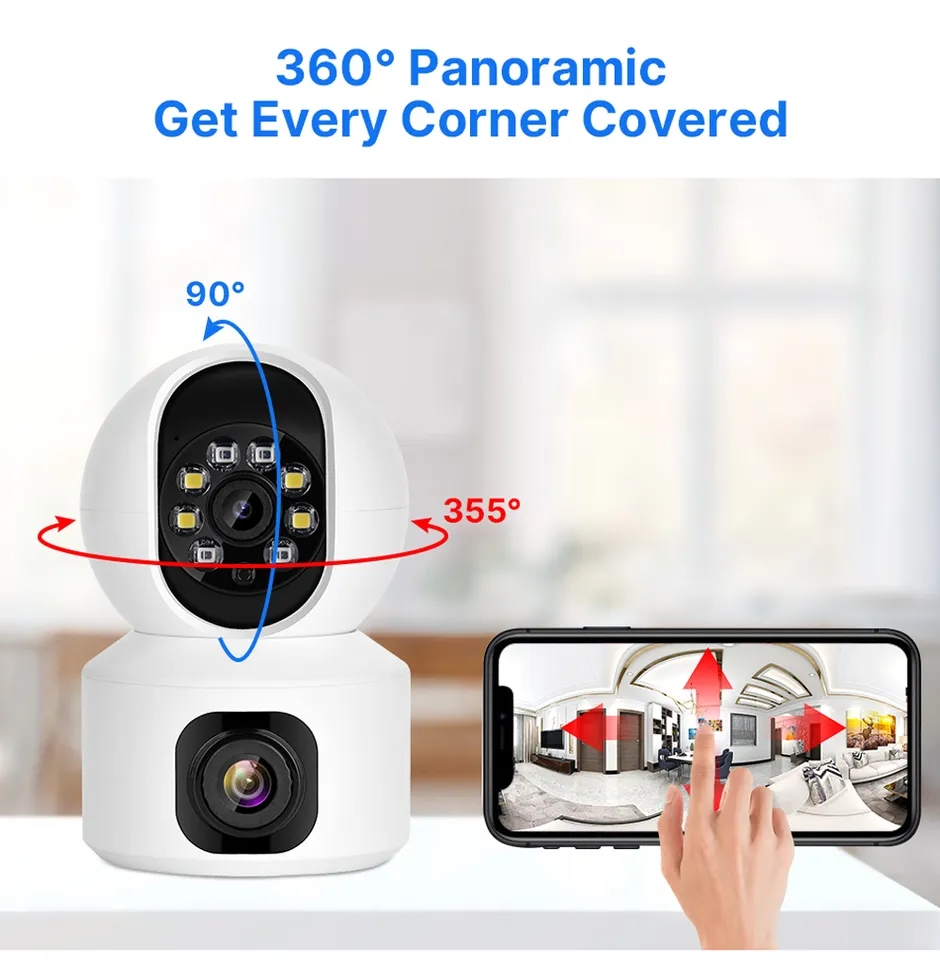

PTZ | PTZ Control | Rotation angle level 355º; vertical 90º |
Turn PTZ | Flip up and down/flip side to side | |
Video Storage | Video File Size | ≈6G/day |
Record Mode | Manual video recording, dynamic detection video recording, timing video | |
Video Storage | TF card (128GB Max.)/cloud | |
Remote Playback | Support | |
Image Capture | Support | |
Audio | Coding Standard | G.711 |
Two-way Audio | Support | |
Network | Wifi | 2.4G Wifi 802.11b/g/n |
Pairing | Smartlink distribution network addition, AP hotspot addition, QR code scanning | |
Network Protocol | TCP/IP, On-vif, RTSP | |
Extension
| Reset Key | Support |
Human Tracking | Support | |
360º Coordinate Positioning | Support | |
Power Supply | Power | DC 5V 1.5A |
Power Interface | Micro Type-A | |

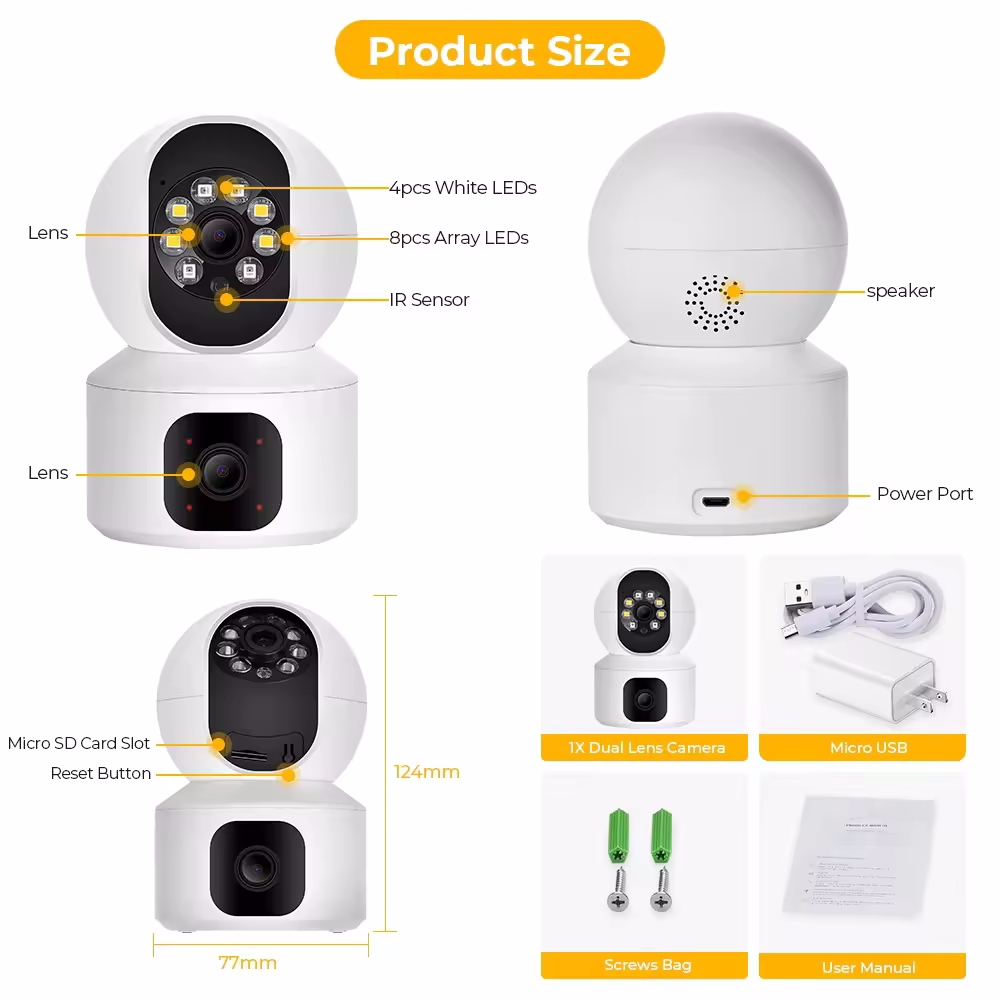

Packaging Specifications | Unit Size | 152*88*88mm |
Net Weight | 0.35kg | |
50pieces/CTN | 460*320*460mm | |
Carton Weight | 17.5kg |
