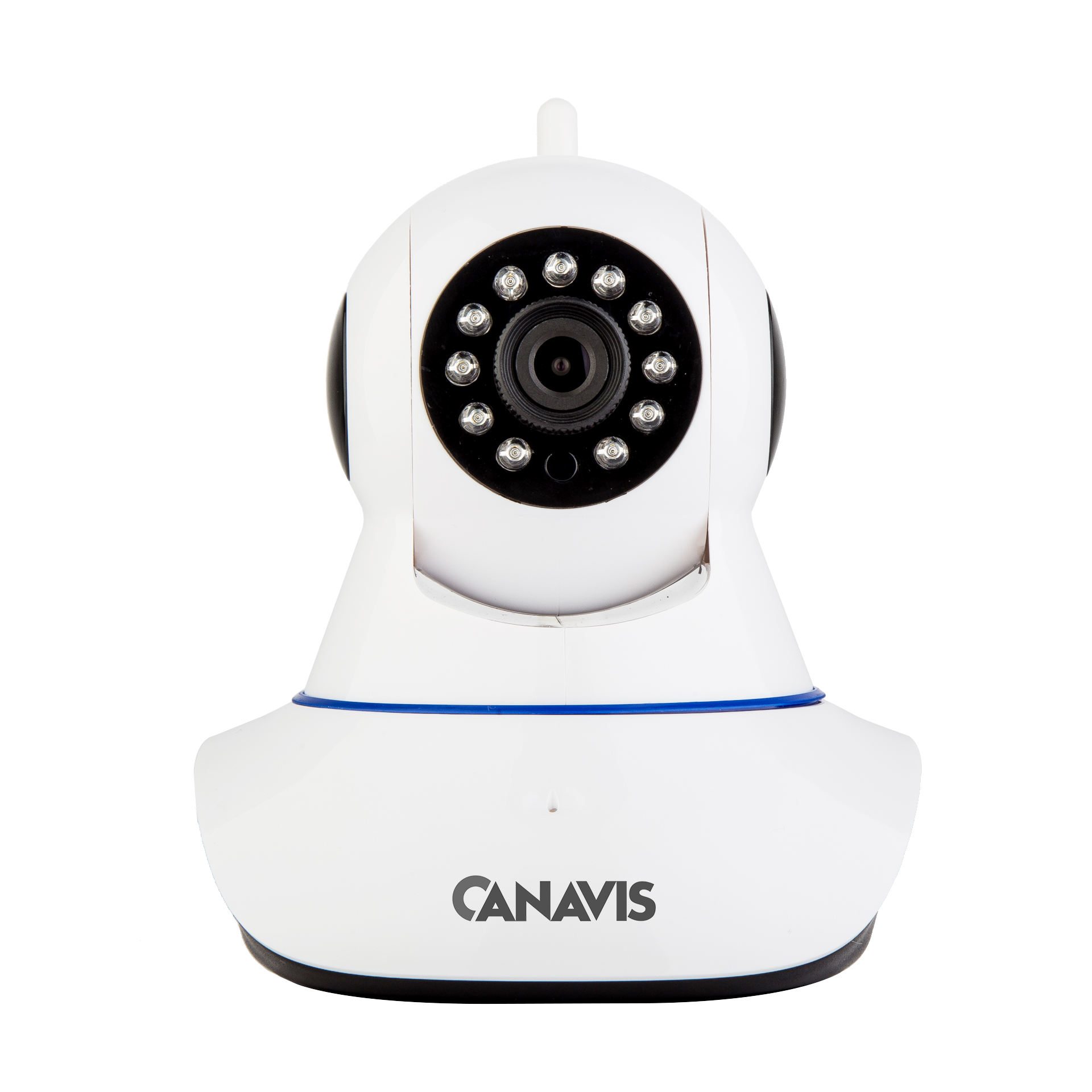

● Smart WIFI camera;
●APP: Casacop
● 2.0/3.0 MP optional;
●Adding devices by scanning code or connecting network directly, or by AP hotspot;
●Support voice monitoring, intercom, motion detection and alarm;
●Support cloud storage;
●Support IOS / Android mobile phone remote monitoring;
●Wired network port RJ-45 10-100MB, wireless network 802.11b/g/n;
●Power supply: DC 5V 1.5A,
●Working temperature: -20℃－＋55℃;
● Support 8-128G TF card storage;
●Waterproof Index: only for indoor
Specification parameter | ||
system | Operation System | Embedded LINUX OS system |
APP | Casacop | |
Video | High Definition | 1080P |
Video Compression | Smart H.264+ | |
Rotation angle | Horizontal:355° ; vertical: 90° | |
Object tracking | Support | |
low illumination | 0.1LUX/F1.2 | |
picture Capture | Support | |
Video Flip | Support | |
Audio | Coding standard | G.711 |
Two-way Speech | Support | |
Record management | Video file size | 2.5GB-4.5GB/Day |
Record Mode | Manual record, motion detection record, scheduled record, alarm record | |
Video storage | TF Card/Cloud | |
playback, back up | Support | |
Alarm trigger | Video Push、Alarm recording、screen shot capture ,sending Email | |
Network | Network Interface | 1*RJ45 , 10/100M10-100 Base-T, self-adaptable Ethernet port |
WIFI | 802.11b/g/n | |
Bitstream | Three Stream | |
Network Protocol | Support TCP/IP、RTSP、ONVIF, etc | |
transmission mode | P2P、Smart Cloud Sever | |
WIFI connection | Sweep QR code，Network Cable connection，AP Hotspot Addition | |
extend | TF Card | Maximum support 128GB TF card |
Reset key | Support | |
power supply | Power | DC 5V 1.5A |
Power consumption | 5W | |
work environment | Suitable place | Home、shop、School、factory； |
Installation mode | Flat put、Wall mounted、hoisting | |
Working Temperature | -10℃－＋55℃ | |
Working humidity | 10%－90% | |
Other | Camera lens | 3.6MM |
Lamp board | 10pcs | |
